Big E's 'ukulele complete

Model#: UMCTL10 Serial#: SWWBMT02

Bison's 'ukulele complete

Model# UMCTH10   Serial # K3BMT03

Bison's 'uke Update - Boxed up

Bison's 'uke update - The process of bending the sides...

Bison's 'uke update - The process of shaping the heel and mounting the sound board to neck.

Since this 'ukulele has a "Spanish Style" neck construction the sides will be attached into the neck with heel slots.

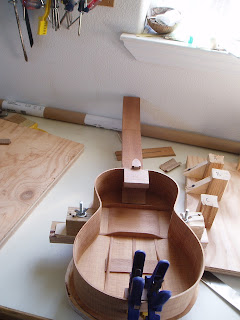

Bison's 'uke update - The process of attaching the sides to soundboard...

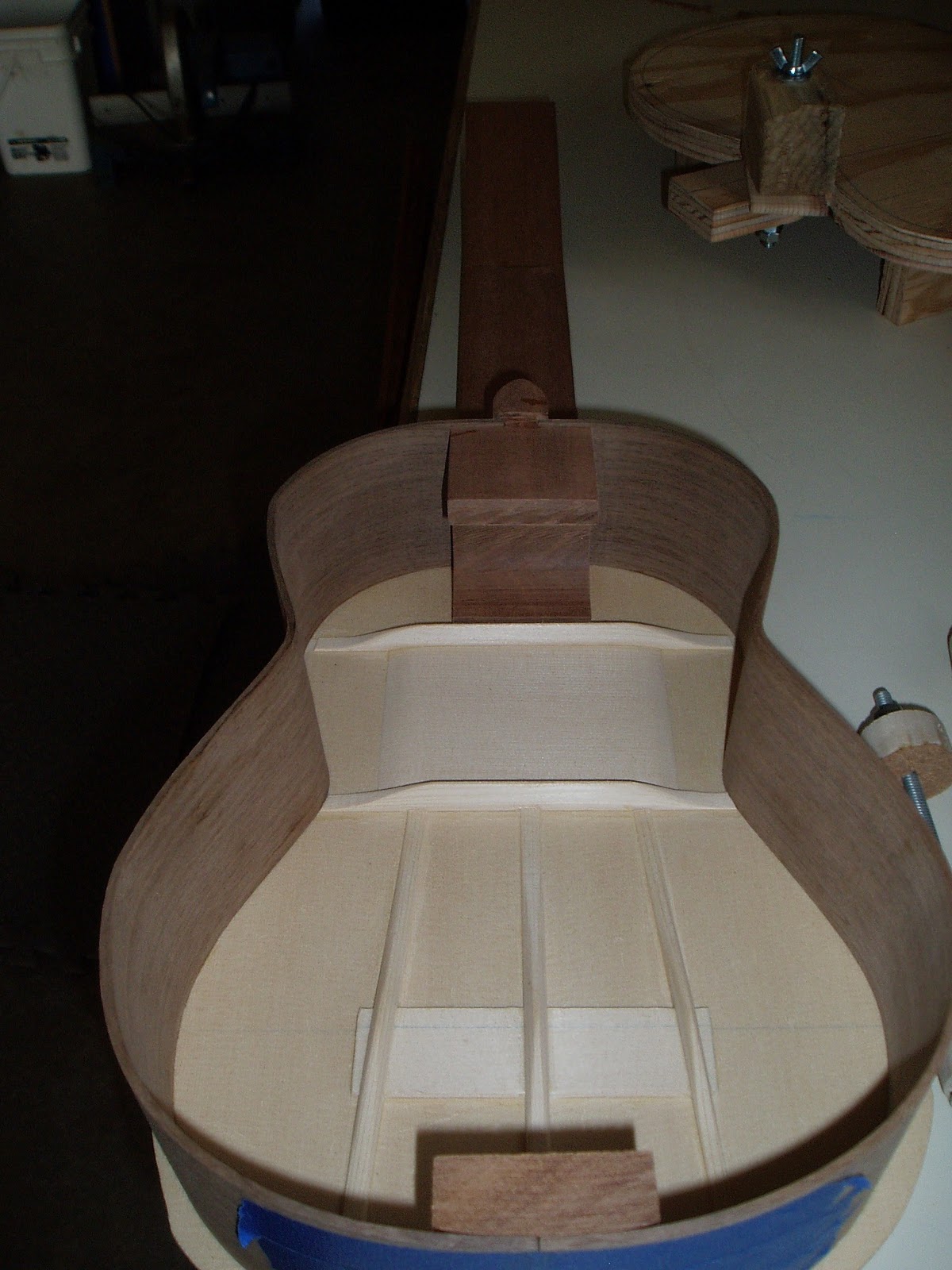

Big E's 'uke update - Attaching the sides...

Solid heel...

Since the heel and bottom of the neck were bigger then the side, it had to be cut down. The heel was left tall so it will be flush with the bottom of the finished 'uke.

Subtle features of the neck....

The neck has a shelf cut out on the top where the soundboard is secured...

Big E's 'uke update - Rough cut the heel on the neck

After the side slots are cut into the neck.......

 the heel is rough cut on a band saw......

 then the neck is placed on a heel nibbler jig to speed up the process of shaping the heel.

Here is the rough cut neck before chiseling the heel into a more asthetic feature of the 'ukulele.

Big Easy's 'Uke update... Inlay and tone bars

Bison's 'Uke update...

Using a guide pin to rout a 3" circle.

Routing and gluing the Abalone inlay...

Sand, shape, and glue Abalone inlay to fit into router groove.
